Overview

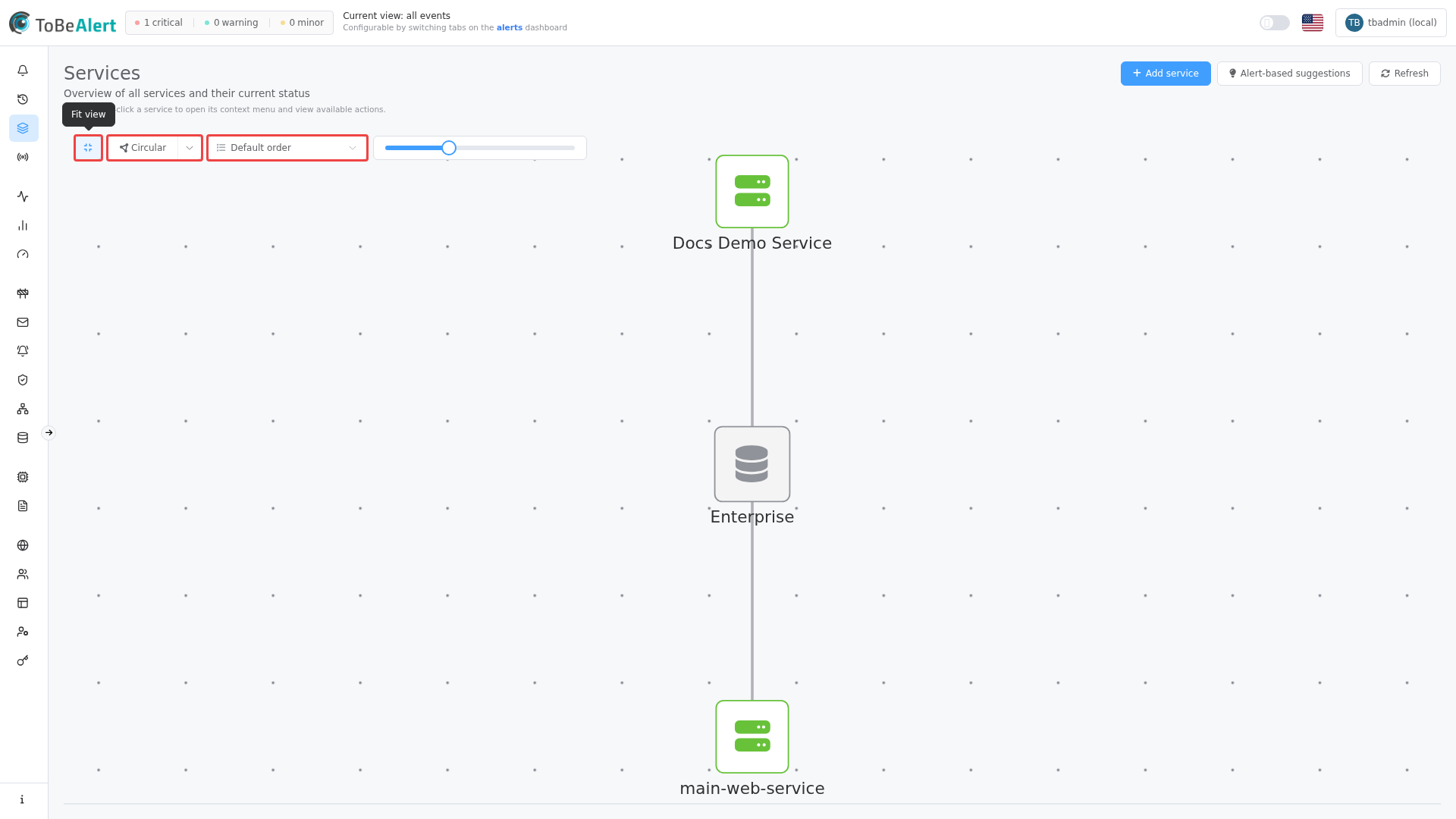

The Services view is your service catalog: a curated list of services that ToBeAlert knows about, shown as an interactive service map. Each catalog entry can carry a custom icon, link to active alerts, and connect to Service Topology when a topology exists for that service.

Build the catalog manually, or use Alert-based suggestions to discover service names from existing alerts and add them in one click.

Step	What you configure	Menu / route	Documentation
1	Catalog — name, Service ID, icon, description	Alerts → Services → /services	Managing services
2	Service map — layout, node order, fit view, context actions	Same page — graph area	Service map
3	Alert-based suggestions — ghost nodes from alerts not yet in the catalog	Alert-based suggestions on /services	Alert-based suggestions
4	Per-service alerts — table, TQL search, bulk Details	Click a service node on the map	Service map — Alerts panel

Where to find it in the UI

In the sidebar under Alerts:

• Services → /services

The page header shows Services with the subtitle Overview of all services and their current status.

Header actions:

Button	Purpose
Add service	Open the create drawer
Alert-based suggestions	Discover services from active alerts (see dedicated page)
Refresh	Reload catalog entries and alert metrics; node color and size update

A tip under the header reminds you that right-click a service node opens its context menu.

Permissions

Viewing and managing the service catalog requires the appropriate Services permission in your organization. If the Services menu or Add service is missing, contact your administrator.

How the parts fit together

Typical workflow:

1. Open Alerts → Services and review the Enterprise hub with service nodes around it.
2. Click Alert-based suggestions to preview services found in alerts that are not in the catalog yet; add individual nodes or use Enterprise to add all.
3. For services that need custom labels or icons, click Add service (or Edit service from the context menu) and set Name, Service ID, Description, and Icon.
4. Click a service node to open the alerts panel below the map; use TQL search to narrow the list.
5. When a topology exists, use View Topology from the context menu or alerts panel to open Management → Service Topology for that service.

The catalog is shared across the product: Service Topology topologies, Service KPIs, status pages, and dashboard widgets all reference services you define here.

Node appearance on the map

Visual cue	Meaning
Border and icon color	Worst active alert severity for that service (healthy = green, critical = red, etc.)
Badge (top-right)	Count of active alerts; hidden when zero
Node size	Relative alert volume compared to other services on the map
Dashed border / pulse	Suggested node from Alert-based suggestions (not yet in the catalog)

Nodes are arranged automatically — you choose layout and sort order, not manual drag positions.

Related modules

Module	Relationship
Service Topology	Per-service environment/resource graph; View Topology from a catalog service
Alerts dashboard	Alerts carry a service attribute used for grouping and suggestions
Service KPIs	KPI definitions reference catalog services
Alert sources	Inbound alert sources populate the service field on received alerts

Best practices

1. Start with Alert-based suggestions when migrating from an existing alerting stack — it surfaces real service names from production alerts.
2. Keep Service ID stable — it cannot be changed after creation and must match the service value on incoming alerts.
3. Pick distinct icons per team or tier so the map stays readable at a glance.
4. Refresh after major incidents so node colors and badge counts reflect current severity.
5. Create the catalog before Service Topology so Service to fetch lists the right IDs when you create a topology.
6. Use the alerts panel TQL search instead of leaving the page when triaging a noisy service.
